Wireless remote transmitters enable control of up to three doors using a single device. They are perfect for use at front desks or in locations where wiring is challenging. These transmitters are compatible with magnetic locks, electric strikes, keypads, gate operators, and door operators. Each kit comes with a channel receiver, a transmitter with a mount, and a keychain for convenience.
Product Features:

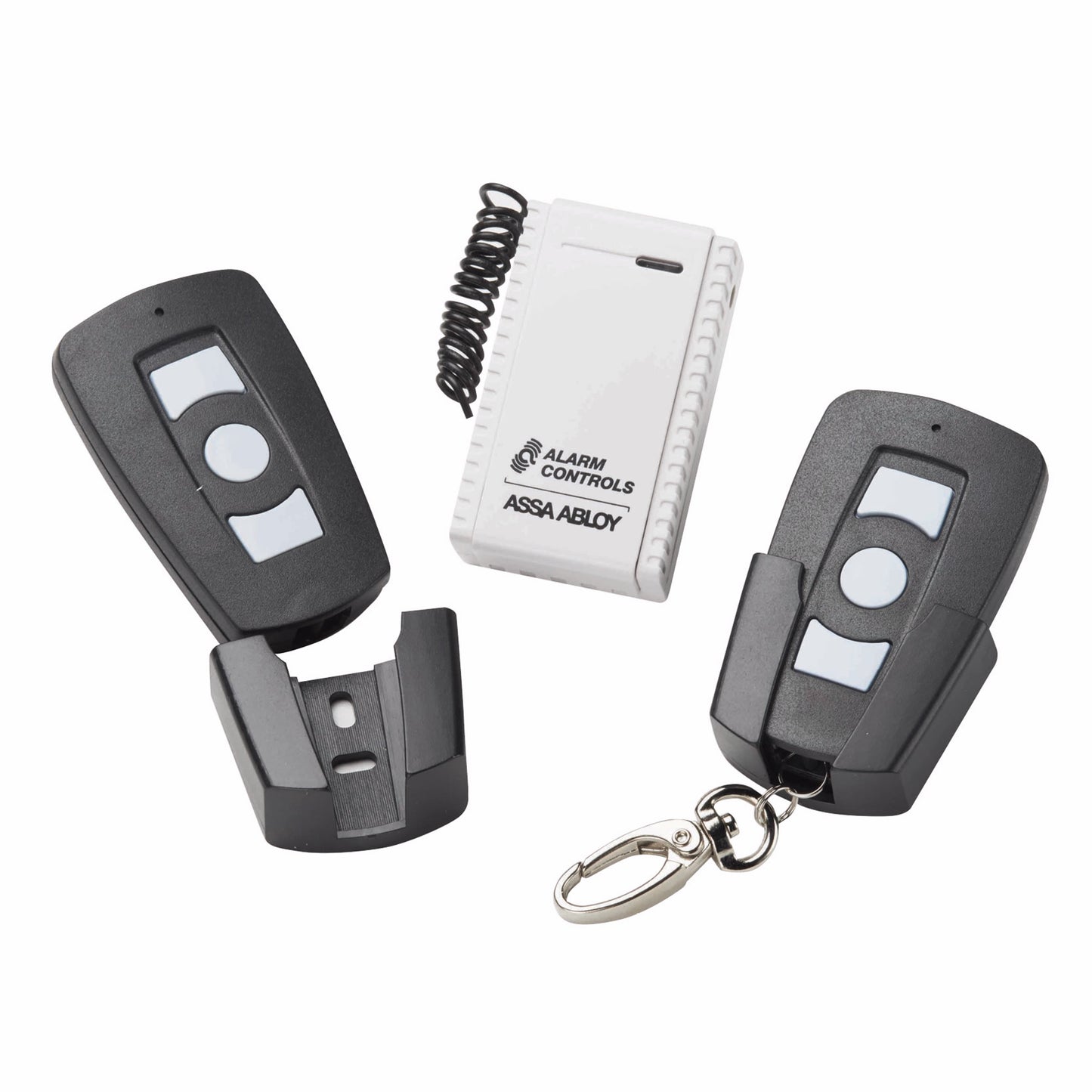

RT-1 Kit: Includes one channel receiver, two transmitters with mount and keychain.

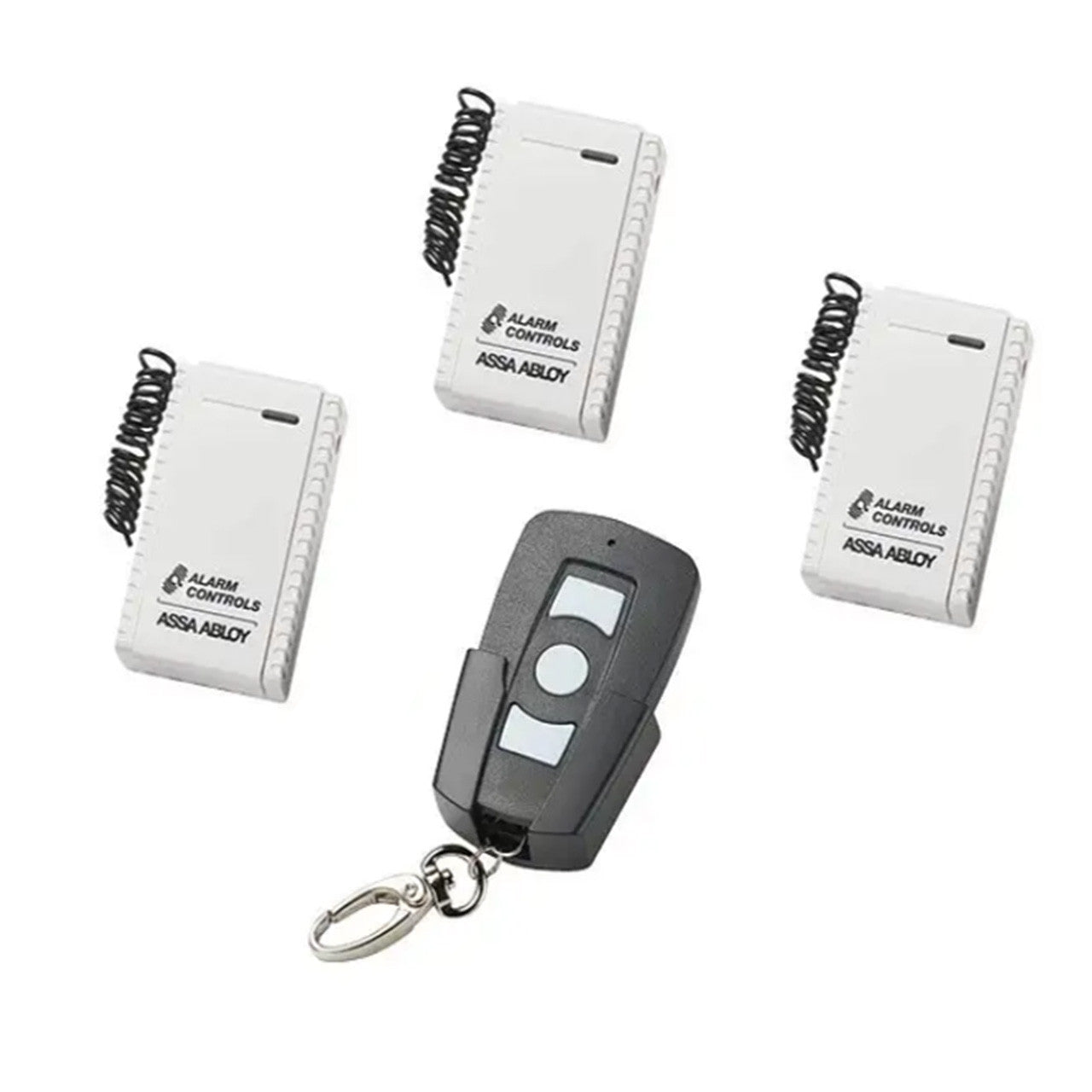

RT-3 Kit: Includes three channel receivers, one transmitter with mount and keychain.
Receiver Power Options: Operates on 12 or 24 VAC or VDC.
Current Draw: Maximum of 50mA.
Temperature Range: -20°C to 60°C.
Security: Rolling code technology with over one billion code combinations.
Relay Specifications: SPDT contacts rated at 1 Amp @ 30VDC or 120VAC.
Delay: Built-in five-second delay on release.
Relay Modes: Factory set for momentary mode; can be adjusted to latching mode.
Transmitter Capacity: Supports up to 30 transmitters.
Dimensions: 2-1/2" L x 1-1/4" W x 3/4" D.
Design: Off-white case blends with any décor.
Terminals: Screw terminals are hidden by cover.
Status Indicator: Bi-color (red & green) LED indicates relay status.
Compatibility: Part of the Safer2Open™ line of low-touch and touchless door hardware solutions from ASSA ABLOY.
